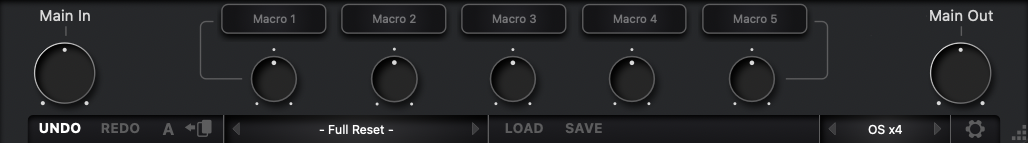

BOTTOM SETTINGS PANEL

Global Input Gain
Main Input Gain controls the overall input level of the plug-in input, before all Channel Groups.

Macro Control
In the studio, when working with hardware devices, they often turn knobs with both hands; on a computer with one mouse, this is difficult to do, so we tried to implement something similar using the Combo knob.

For convenience and speed up work, you can bind several parameters to one macro
controller.

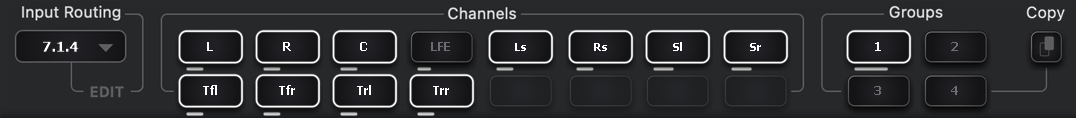

For example: Link the Threshold parameter from all 4 «Channel Groups" (The Channel Groups selection is located in the upper right corner of the plugin. More about Channel Groups selection on page 3) to one macro controller and control them all at the same time. Or bind two different parameters to one controller, invert one of them and boost the input gain and lower the output ceiling using only one macro controller. There are many possible uses,
just try this.

To bind parameters to a macro controller, click on the Macro button.
Note: To rename a Macro button, right-click on the button and enter a
new name.
When the Macro button is active, additional parameters appear for those controllers that can be controlled.

Select the parameter you want to control, it has 4 controllers, they correspond to the «Channel Groups" numbers (The Channel Groups is located in the upper right corner of the plugin. More about Channel Groups on page 3), select the one you need. Adjust the parameter control sensitivity, right is positive value (blue color), left is inverted (red color), To return the knob to position 0, click twice. To return the knob to position 0, double-click with the left mouse button.

Global Output Gain
Main Output Gain Main Output Gain controls the overall output level of the plug-in output, after all Channel Groups.

Undo/Redo
Undo and Redo functions allow undo and redo of changes made to the plug-in parameters.

A/B
A/B buttons allows you to load two independent settings and compare them quickly.

Preset Display
Factory presets are included in the plug-in installation, installed in the following locations:
Mac: Users\[user name]\Music\Red Rock Sound\RRS Fuji\Patches
Windows: C:\Users\[user name]\Documents\Red Rock Sound\RRS Fuji
You can save the current Comp settings as the Default preset. - Full Reset – is the default
preset

Load
Load button allows loading of presets not stored in the locations described above.

Save
Save button allows for save of user presets.

Oversampling
OS x_ activates 2x, 4x or 8x oversampling, 1x disables oversampling. (note that when the HQ mode is on, CPU will be loaded more than usual).

Global Preferences
button opens Global Preferences menu.

GUI Rendering
This switch allows you to choose between GUI rendering engine:

Normally, no need in switching rendering mode manually, plug-in try to initialize D3D9 then OGL (if D3D9 failed) and CPU (if OGL failed) automatically. But if you have problems with the GUI, you can manually switch and test different rendering methods at work.

This switch is available only in the Windows version of the plugin. For the Mac version, this is not necessary.

Note: Drivers of some video cards (for example, Intel Arc A380) in D3D mode adversely affect the plug-in (periodic noise or whistle), if you encounter a similar phenomenon, use OGL or CPU.

SIMD optimization
This switch enables or disables SIMD optimization, it can be used by multichannel processing with high oversampling. It is undesirable to use in mono and stereo modes, SIMD only slows down the plug-in due to the overhead of splitting the data for optimization.
(Currently in beta testing)

SIMD MacOS
- In the ARM version, you can enable or disable NEON;
- In the Intel version, you can enable or disable SSE2.

SIMD Windows
- In the Intel version, you can enable or disable AVX (if supported), or SSE2.

The Windows version has a limitation: if the CPU does not support FMA, then the optimization will not work, even if AVX or SSE2 is supported.

Note: Enabling/disabling SIMD is saved in the project for each plugin individually. i.e. if a specific instance of the plugin slows down, then you can enable SIMD for it, and others, if they are in the project, will not be affected by this optimization.

Effect Groups Connection
This parameter switches the arrangement of effect groups to serial or parallel.

Note: If the processing effect introduces latency, then it is better to choose a parallel connection for this plugin, because when using a serial connection, the latency will increase many times.
